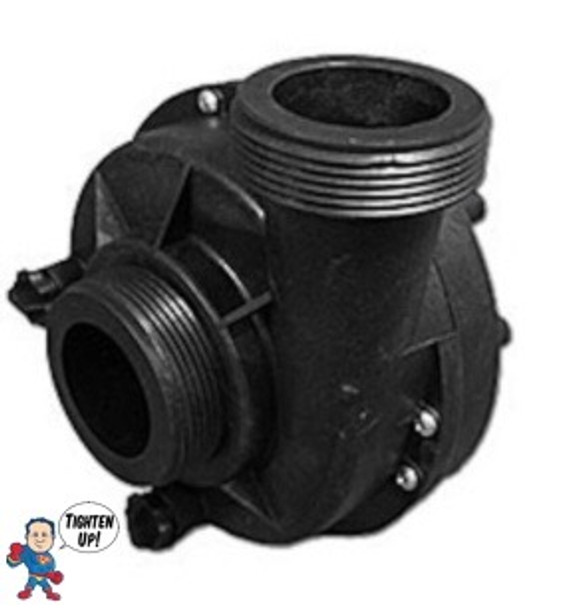

This is a Complete 48 Frame 1.5HP Wet End Assembly designed for Jacuzzi Piranha, Theramax, and Theraflo pumps featuring 8-mount configuration for maximum positioning flexibility.
This is an unassembled kit requiring installation. Your package contains all essential components: Volute housing, Face plate, Impeller, Seal, Face Gasket, and mounting Screws for complete assembly.
The 8-mount design provides universal positioning capability including 45-degree angles. Install at 12, 3, 9, 1:30, or 3:30 o'clock positions. The multiple mounting holes enable rotation to any required orientation for your specific application.
Specifically engineered for Sundance® and Jacuzzi® spa systems equipped with this particular wet end configuration. Features 2" MBT (Male Buttress Thread) connections with side discharge outlet. Verify compatibility with your existing 48 frame pump before ordering - this assembly will not fit alternative wet end designs.
Related components including seal kits and replacement parts for 8-mount bracketless Piranha pumps are available separately at Global.
