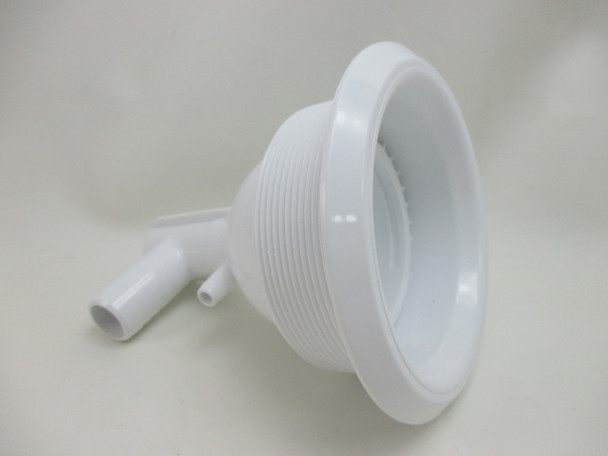

Pentair Cyclone Replacement Jet Body Assembly - 4 3/4" Width
This wall-mounting jet body component works exclusively with Pentair Cyclone spa jets featuring face diameters between 5 inches and 6 1/2 inches. The body includes integrated barbed connections: a 3/8 inch fitting for air supply and a 3/4 inch fitting for water line attachment.
Installation Specifications:
- Required shell cutout diameter: 3 3/4 inches to 3 15/16 inches
- Jet body width measurement: 4 3/4 inches
- Compatible with Pentair Cyclone jets that have rounded, ball-shaped rear diffusers
- Works with jet face widths: 5 inch or 6 1/2 inch
Important Installation Notice: Keep silicone sealant away from the gasket surface during tightening procedures, as contamination will cause the gasket to displace improperly.
What's Included: Jet body assembly only. The mounting nut, sealing gasket, and installation silicone are available as separate components and must be purchased individually.
Compatible Components for This Jet Body:
- Mounting nut designed for Pentair Cyclone 4 3/4" jet bodies
- Sealing gasket for Pentair Cyclone 4 3/4" jet body installations
- Pentair Cyclone internal jet assemblies in 5" diameter (available in Swirl, Twin Roto, Directional, and Textured configurations)
- Multiple finish options including Dark Gray, Silver, and Gray color selections
