Description
Note: When you order this pump you will receive the newest version of the pump which is a baseless and you will receive the base as well.. This will be able to be installed in any position but you will have to install the base which may not line up with the original mounting position.. It is hit or miss as to how close the base will mount with each tub..But choices are limited

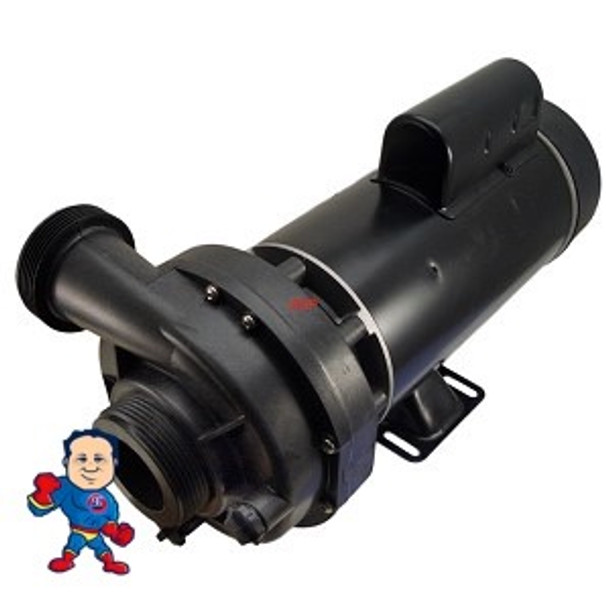

This pump is a Pump, Jacuzzi / Sundance, TheraFlo, 48FR, 2.5HP, 1SP, 230V that measures about 3" across the threads.. The amperage is about 11.0 Amps on high speed and 3.5 Amps on low speed and this pump will work as a one or speed pump.. Note: This Pump will Only Work in Jacuzzi and Sundance Hot Tubs that have 90 Degree Wet Ends.. DO NOT order this pump for any other application as it will not work....
| Motor Voltage | 230v |
| Speed | 1 Speed |
| Motor Amperage/Wattage | 11.0A |
| Horsepower | 2.5hp |
| Manufacturer | Balboa Water Group |
| Pump Model | TheraMax |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 6,9 o`clock |
