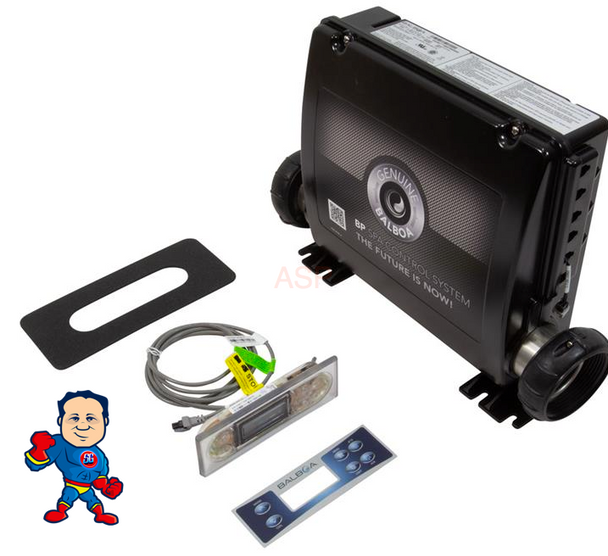

Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside

(No reviews yet) Write a Review
SKU:
HTPBP7G64EK
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
  • Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 4.0kW, 115v/230v, with TP500 Topside
MSRP: $799.99
$579.99
— You save $220.00

Description

The next generation feature rich Balboa BP7 control system with a 4.0KW heater bundled with the sleek rectangle shaped 6 button TP500 topside control with large easy to read backlit LCD screen and simple to follow menus.

Kit includes: system, panel, panel adapter plate, light cord and overlay(s)..

If you want the Wifi Connect Kit that works with this control system click here: Balboa, Wifi Module Kit, Platinum BP Series

 BP7 System Specifications:

  • 230 volts 60HZ only, cannot run on 120 volts
  • 4.0KW heater
  • Can operate:
    - Pump 1 - 1 or 2 speeds (Default setting 2 speed, can be changed)
    - Pump 2 - 1 or 2 speeds or Blower
    - Dedicated circulation pump, (min 20 GPM and min 1.5" plumbing required)
    - Ozonator
  • M7 Patented Sensor heater technology
  • Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
  • Balboa Bluetooth Audio compatible, module 59089 sold separately
  • Spa light control 1 Amp max
  • 50 Amp GFCI required if running more than 1 pump

 When checking out in the comments box tell us what you are running with the system and we will send the conversion cords needed to retrofit your system..

 How many Pumps, Blower, Light, Ozone and Circulation Parts..

  • Balboa Spa pack BP7 (4.0KW Heater)
  • TP500 topside control Face size 6.32" x 2.25", (Hole size 5.77" x 1.65")
  • Adaptor plate (Bezel) 9" x 4"
  • Cord for light, 10' long
  • Balboa BP7 programming manual

Control Box Dimensions

Height Width Depth
10-9/16" 12-1/4" 4-1/2"


Important.
This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.

Number Of Appliances 2
Manufacturer Balboa Water Group
Model BP7
Supply Voltage 230v
Heater Type Fixed - Bottom
Heater Wattage 4.0kW
Topside Included TP500
Circ Pump Ready Optional 115v/230v
Auxiliary Topside Ready Yes
Fiber Optic No
Accessory Ready Yes
Wi-Fi Compatible Yes
50/60 HZ 50Hz, 60Hz
