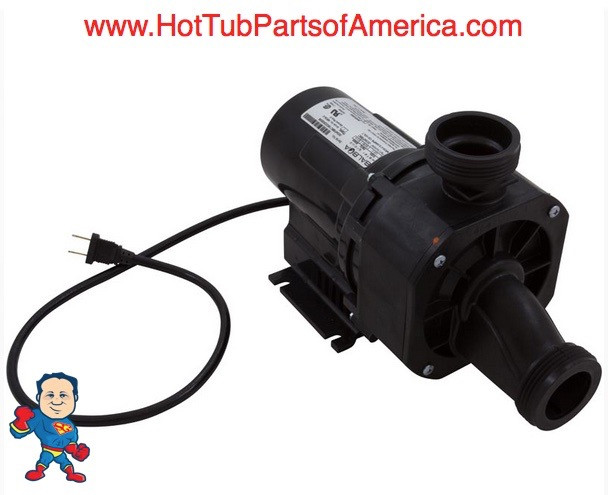

Gemini Plus II Pump Complete with wet end and Air Switch...
1 1/2" X 1 1/2" which measures about 2 3/8" across the threads..
Specifications are .75 HP 115Volt 8.5Amps...
For high flow bath jet systems
- Length = 12-11/16"
- Width = 5-11/16"
- Discharge Height = 7-3/4"
- Overall Height = 7-3/4"
The air switch for this pump is located on the back side of the motor in the base.
| Complete Pump Type | Bath Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | None |
| Pump to Motor Foot Types | Footless |
| Suction Style | Bottom |
| Suction Connection (Physical Dimension) | 2-7/16"od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Center |
| Discharge Connection (Physical Dimension) | 2-7/16"od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Horsepower | 0.75hp |
| Motor Amperage/Wattage | 8.5A |
| Manufacturer | Balboa Water Group |
| Pump Model | Gemini Plus II |
| Volute Fastening Type | 4 Screws |
