Description

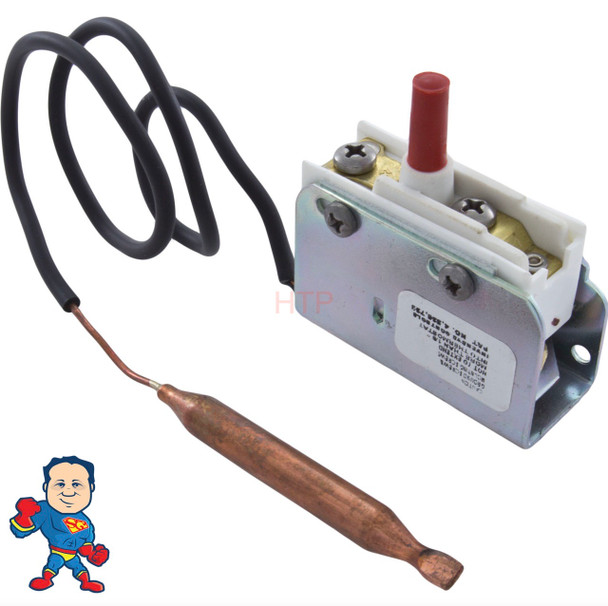

This part is a Hi-Limit, 5/16" diameter, 12"Capillary, SPST, Screw Terminal, 25A
Hi Limit Specs:
Single pole rated at 25 amps with temperature rating set at 121°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater
12" capillary length, 5/16" bulb thickness
This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad hi limit with a new one.
|
Hi-Limit Application |
Generic |
|
Hi-Limit Style |
Capillary |
|
Bulb Diameter |
5/16" |
|
Bulb Length |
2-3/4" |
|
Capillary Length |
12" |
|
Pole/Throw |
Single Pole Single Throw (spst) |
|
Hi-Limit Amperage |
25A |
|
Electrical Connection |
Screw Terminal |
