Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 0982601-02, 2.5HP, 230v,2-spd, 48frame

(No reviews yet) Write a Review
SKU:
HTP34-402-5LEHWatkins0982601
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 72196, 73023, 2.5HP, 230v,2-spd, 48frame, Wavemaster 9000 9200
  • The Suction and Pressure side of this pump measures about 3" edge to edge across the threads..
  • The Suction and Pressure side of this pump measures about 3" edge to edge across the threads..
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 2.5HP, 230v,2-spd, 48frame
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 72196, 73023, 2.5HP, 230v,2-spd, 48frame, Wavemaster 9000 9200
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 72196, 73023, 2.5HP, 230v,2-spd, 48frame, Wavemaster 9000 9200
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 2.5HP, 230v,2-spd, 48frame
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 2.5HP, 230v,2-spd, 48frame
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 2.5HP, 230v,2-spd, 48frame
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 2.5HP, 230v,2-spd, 48frame
  • Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 2.5HP, 230v,2-spd, 48frame
MSRP: $641.99
$549.95
— You save $92.04

Description

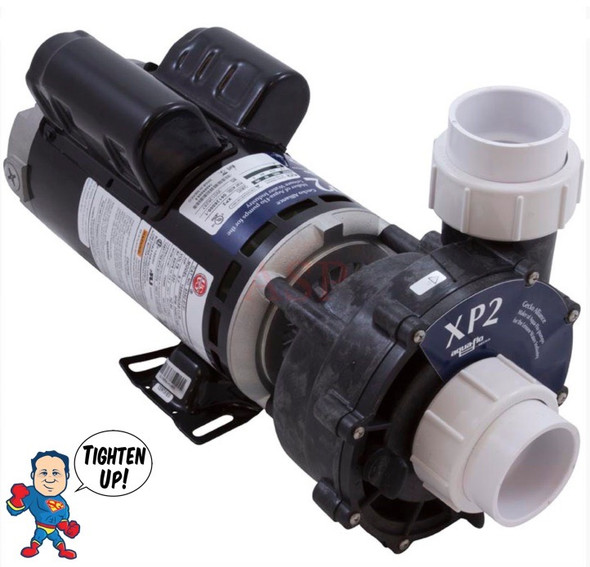

As of 11/2024 Aqua-flo has started to send this pump with a capacitor bump in an odd spot that may affect your installation. In light of that we are now sending this pump assembly out as a separate 10.5 Amp motor and a genuine 2.5 HP XP2 wetend. You would need to assemble this onsite but it is very easy to do and we are happy to help with that if you need it. This will ensure we get you a pump that does the job the first time. We are hoping that this is changed back to the original in the future.

This pump is a Hot Spring, Watkins, Pump, Vendor Code 4081, 0982601, 2.5HP, 230v,2-spd, 48frame also called Wavemaster...
This pump is also the closest replacement for the Obsolete 0982601-02 Power Right Pump..

  Portable Spa Pump
Speed 2 Speed (2-Spd)
Motor Voltage 230v
Drain Plug Location 4,6,9 o`clock
Pump to Motor Foot Types 9
Suction Style Center
Suction Connection (Physical Dimension) 3-1/16"od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16"od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 2.5hp
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 10.7A/3.2A
Manufacturer AquaFlo
Pump Model Wavemaster
Manufacturer Impeller Number HTP35-402-BCBC
Volute Fastening Type 8 Screws
Volute/Sealplate Number

92770705
