Description

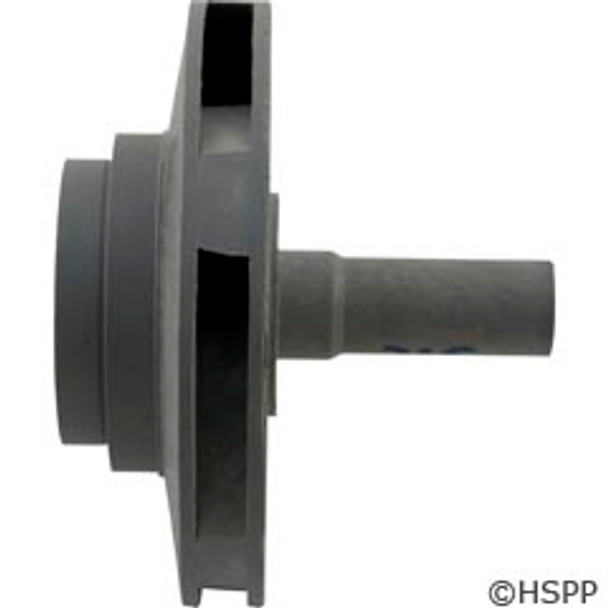

Vico/Balboa Ultima/Ultra Flo Pump Impeller
Closed face impeller made for the Ultima and Ultra Flo spa pumps by Vico/Balboa. Rated at 1.5hp,which is between 8 and 9 Amps.. it is used in an Ultima and/or Ultra Flo pump wet end, and must be installed on a 1.5hp (or greater) thru bolt motor.
For the seal kits that fit this impeller click here: Vico Pump Seals
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4" |
| Vane Width ID | 5/16" |
| Eye Diameter OD | 2" |
| Eye Length | 5/16" |
| Impeller Width OD | 1/2" |
| Seal Seat Depth | 1/16" |
| Shaft Length | 1-7/8" |
| Shaft Diameter OD | 11/16" |
| Seal Seat Diameter OD | 1-1/2" |
| Manufacturer | Vico/Balboa |
| Pump Application | Ultima, Ultra-Flo |
