Description

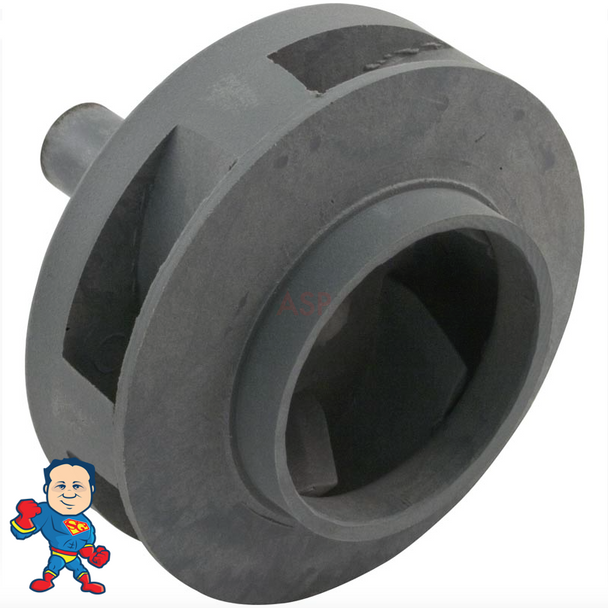

Vico Ultimax Pump Impeller
Closed face impeller made for the Ultimax spa pump by Vico. Rated at 1.5hp,which would be 8-9.0 Amps.. it is used in an Ultimax pump wet end, and must be installed on a 1.5hp (or greater) thru bolt motor.
Click here for the Seal for this impeller Vico Seal Options
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3-13/16" |
| Vane Width ID | 1/2" |
| Eye Diameter OD | 2-1/4" |
| Eye Length | 3/8" |
| Impeller Width OD | 1" |
| Seal Seat Depth | 5/16" |
| Shaft Length | 2" |
| Shaft Diameter OD | 11/16" |
| Seal Seat Diameter OD | 1-5/16" |
| Manufacturer | Vico |
| Pump Application | Ultimax |
