Description

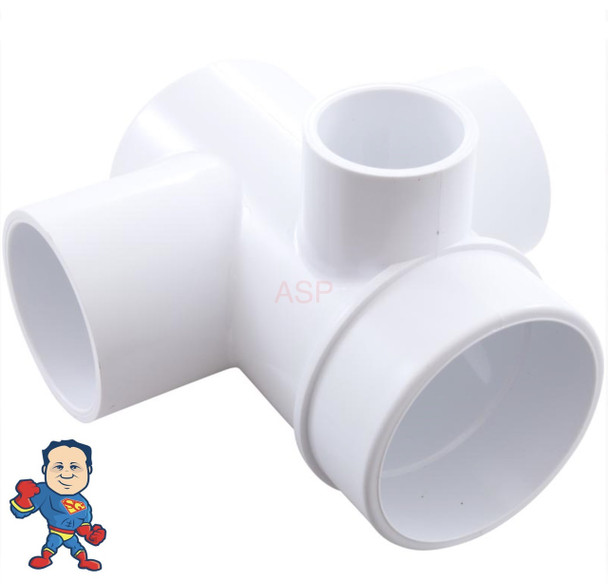

This Pentair diverter jet body assembly accommodates 4 5/8" face diameter jets and features dual water ports positioned opposite one another. Each water port measures 1 1/2" slip by 1 1/2" slip, while the air connection located on the body's underside accepts 1" slip fittings. Installation requires a 3-1/8" hole size. Additional components including a retaining nut, gasket, and silicone sealant are necessary to complete the assembly.
Diverter Functionality: This body design enables rotational jet adjustment to redirect water flow to various spa zones, providing customizable hydrotherapy control.
Compatible companion components for complete installation:
Wall Fitting, BWG/Pent Diverter Jet, 2-Port
Wall Fitting Nut, BWG/Pent Diverter Jet, 2-Port
Wall Fitting Gasket, BWG/Pent Diverter Jet, 3-Port, 2-Port
Silicone Sealer Clear 3oz Tube
Jet Internal, Pentair, 2 Port, Diverter Jet, 4-5/8" face diameter, Fix, 5 Scallop, Gray
Specifications:
| Hole Size | 3-1/8" |
| Air Connection Size | 1" |
| Jet Part Type | Body |
| Air Connection Type | Slip |
