Description

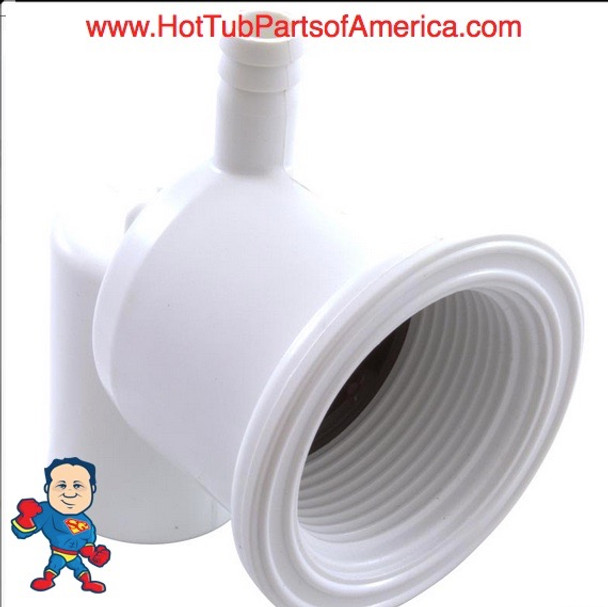

This Jet body Fits an American Products Pentair Luxury Micro Jet that has (2) Tabs to hold it into the Jet Internal..See an example of the jet style in the picture section here... The Water fitting is 3/4" Slip glue in Fitting that can be plumbed into one side and capped on the other side or plumbed in series to the next jet body and the Air Connection is a 3/8" Barbed Air Fitting that can be plumbed on one side and capped on the other or can be plumbed in series to the next jet body or manifold... The Hole Size in the tub shell is 1 5/8" that this fitting works in the way is goes together is the body is placed in the back of the shell with silicon around and the threaded flange is slipped through the front with either a gasket or silicon.. I will have links below to the flange, gasket, silicon and the jet body options as far as the plumbing connections... As well as Jet Insert Options are found below too...
| Jet Part Type | Body |
| Hole Size | 1-5/8" |
| Air Connection Size | 3/8" |
| Air Connection Type | Barb (b) |
| Water Connection Size | 3/4" |
| Water Connection Type | Slip (s) |
| Manufacturer | American Products/Pentair/Balboa |
| Model | Luxury Micro Jet |
Wall Fitting, BWG/Pent Luxury Micro Jet, White
Wall Fitting Gasket, BWG/Pent Luxury Micro Jet
Silicon Small Tube 1/2oz Special Hot Tub Repair Formula for Sealing Fittings to the Shell
Silicon Medium Tube 2.8oz Special Hot Tub Repair Formula for Sealing Fittings to the Shell
Jet Body, BWG/Pent Luxury Micro, a3/8"barb, w3/4"slip
Jet Body, Pentair American Products Luxury Micro, Air 1/2"slip x Water 1"slip
Jet Body, Pentair American Products Luxury Micro, Air 1"slip x Water 1"slip
Jet Intrnl, BWG/Pent Luxury Micro, 2-1/2"fd, Dir, 5 Scal,Wht
Jet Intrnl, BWG/Pent Luxury Micro,2-1/2"fd,Swirl,5 Scal,Slvr
Jet Intrnl, BWG/Pent Luxury Micro, 2-1/2"fd,Swirl,5 Scal,Blk
Jet Intrnl, BWG/Pent Luxury Micro,2-1/2"fd,Dir,5 Scal,Lt Gry
Jet Intrnl, BWG/Pent Luxury Micro,2-1/2"fd,Swirl,Smth,Dk Gry
