Description

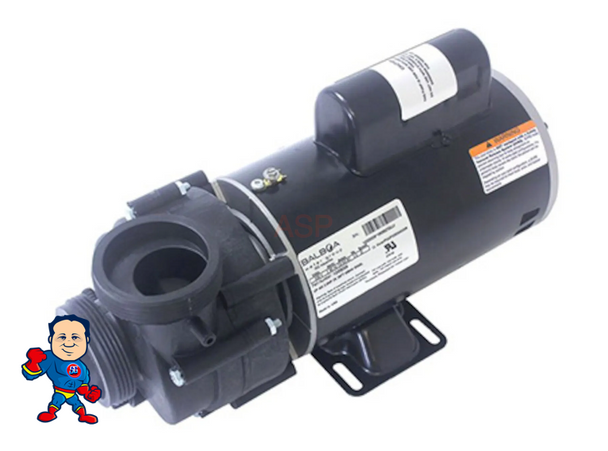

This part is a Complete Pump and motor, Vico Ultima, 2.0hp, 230v, 2-spd, 48fr, 2"Side Discharge..
The connections on this pump are 2" x 2" which measures about 3" Edge to edge on the threads..
Spa Pump Features:
- Compact 48 frame design
- Dual Speed Pump (can also be wired for single speed)
- Multi-direction volute mounting options deliver a range of plumbing configurations
- All seals are carbon ceramic with Viton elastomers for long-lasting performance. Easily enduring prolonged heat and chemical exposure
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 6 o`clock |
| Pump to Motor Foot Types | 13 |
| Suction Auxiliary Port | 3/8" barb (b) 1ea |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16" od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Auxiliary Port | 3/8" barb (b) 1ea |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16" od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 2.0hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 9.0/2.8 |
| Manufacturer | Vico/Balboa |
| Pump Model | Ultima |
