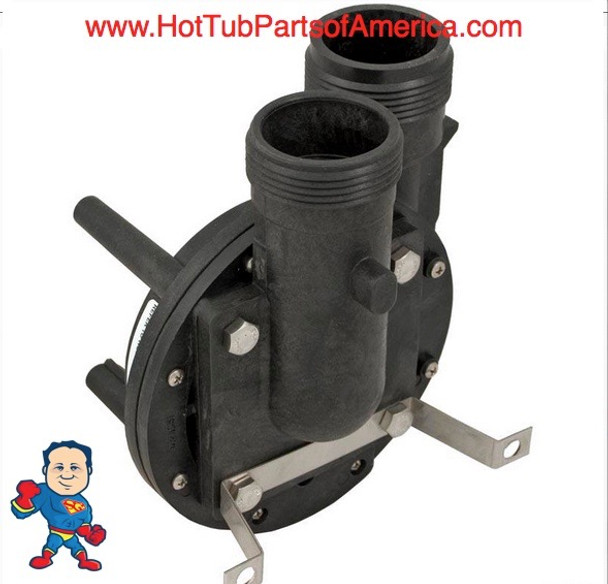

Aqua-Flo FMVP 1.0HP Wet End Assembly - 48 Frame, 1-1/2", 10-11A/115V Vertical Mount

(No reviews yet) Write a Review
SKU:
HTP34-402-1046
Shipping:
Calculated at Checkout
  • Wet End, Aqua-Flo, FMVP, 1.0HP, 1-1/2", 48 frame, 10-11A/115v Verticle Mount Pump The Suction and Pressure sides both Measure about 2-3/8" Across the threads and is called 1 ½”! Also the suction side of this wet end can be used in any position you simply unscrew the four bolts in the front and turn it and tighten the bolts back in and you are done...
  • Wet End, Aqua-Flo, FMVP, 1.0HP, 1-1/2", 48 frame, 10-11A/115v Verticle Mount Pump The Suction and Pressure sides both Measure about 2-3/8" Across the threads and is called 1 ½”! Also the suction side of this wet end can be used in any position you simply unscrew the four bolts in the front and turn it and tighten the bolts back in and you are done... Note: This is not a Circulation pump wet end it is only for Jet pumps with 10.0Amps or more on high speed at 115V...
  • Wet End, Aqua-Flo, FMVP, 1.0HP, 1-1/2", 48 frame, 10-11A/115v Verticle Mount Pump The Suction and Pressure sides both Measure about 2-3/8" Across the threads and is called 1 ½”! Also the suction side of this wet end can be used in any position you simply unscrew the four bolts in the front and turn it and tighten the bolts back in and you are done...
  • Wet End, Aqua-Flo, FMVP, 1.0HP, 1-1/2", 48 frame, 10-11A/115v Verticle Mount Pump This is a 48 Frame Wet End and the Thru-Bolts are about 5 1/4" apart in a cross pattern and 3 5/8" Side to Side....Also the bolt heads on the thru-bolts are 1/4" on a 48 frame motor..IF your bolt heads are 5/16" you have a 56fr motor and this wet end will not work..
  • Wet End, Aqua-Flo, FMVP, 1.0HP, 1-1/2", 48 frame, 10-11A/115v Verticle Mount Pump The Suction and Pressure sides both Measure about 2-3/8" Across the threads and is called 1 ½”! Also the suction side of this wet end can be used in any position you simply unscrew the four bolts in the front and turn it and tighten the bolts back in and you are done...
  • Wet End, Aqua-Flo, FMVP, 1.0HP, 1-1/2", 48 frame, 10-11A/115v Verticle Mount Pump The Suction and Pressure sides both Measure about 2-3/8" Across the threads and is called 1 ½”! Also the suction side of this wet end can be used in any position you simply unscrew the four bolts in the front and turn it and tighten the bolts back in and you are done...
  • Wet End, Aqua-Flo, FMVP, 1.0HP, 1-1/2", 48 frame, 10-11A/115v Verticle Mount Pump This is a 48 Frame Wet End and the Thru-Bolts are about 5 1/4" apart in a cross pattern and 3 5/8" Side to Side....Also the bolt heads on the thru-bolts are 1/4" on a 48 frame motor..IF your bolt heads are 5/16" you have a 56fr motor and this wet end will not work..
MSRP: $149.99
$109.99
— You save $40.00

Description

This is a Full Vertical Mount FMVP 1.0HP Aqua-Flo wet end assembly featuring 1 1/2" x 1 1/2" plumbing connections (thread diameter approximately 2 3/8") with adjustable suction side discharge, designed exclusively for 48 frame FMVP pumps. Compatible with 48 frame motors rated at approximately 10-11 Amps on 115V. Works with both single speed and dual speed motors. The suction fitting rotates 90 degrees for flexible positioning. Complete assembly includes: volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and mounting screws.

Important: Metal mounting bracket not included with this wet end - reuse your existing bracket.

Important: This wet end is designed for jet pumps drawing 10.0 Amps or higher on high speed at 115V - not intended for circulation pumps.

Sizing Guide: Always select horsepower based on your motor's amperage rating. 48 frame motors measure approximately 5 1/2" diameter with 1/4" thru-bolt heads and roughly 5 3/16" between thru-bolts (measured diagonally). 56 frame motors measure approximately 6 1/4" diameter with 5/16" thru-bolt heads and roughly 5 7/8" between thru-bolts (measured diagonally).
