Description

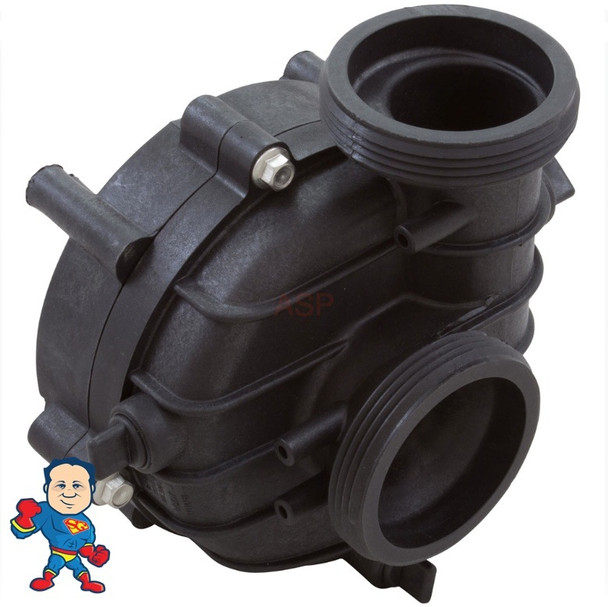

This genuine Sta-Rite complete wet end assembly is engineered for Dura-Jet DJ Series pumps with 2" X 2" Male Buttress Thread connections. Compatible with both 48 and 56 frame thru-bolt motors, this wet end fits 230V pumps running at 8.0 Amps or 115V pumps operating at 12.0 Amps.
Note: The 2" fittings measure approximately 3" edge to edge across the threading.
This wet end includes 3 cast-in bleeder barb connections that come sealed from the factory and require drilling for activation: two located at the suction fitting and one positioned at the pressure side fitting.
Manufacturer Sta-Rite
Pump Model Dura-Jet DJ Series
Motor Frame 48 Frame Thru-Bolt, 56 Frame Thru-Bolt
Drain Plug Location 3,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.0hp
Volute Fastening Type 4 Bolts and 4 Nuts
