Description

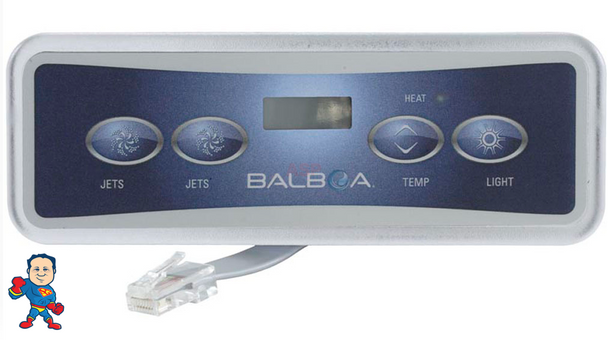

This component is a 4-Button VL401 LCD Control Panel, E4 Model, Balboa, Lite Duplex Digital Configuration, (1) Pump (1) Blower, Temperature Control, Lighting...
This control panel works with Valve, SUV, VS500, VS501 and additional systems. The cutout dimensions required are approximately 2 1/4"x 6 3/8".
Manufacturer Balboa Water Group
Topside Complete Complete Topside
Model Lite Duplex
Buttons 4
Topside Shape Rectangular
Panel Size 6-3/8" x 2-1/4"
Cord Length 84"
This control interface is designed for Balboa VS500Z, VS501Z systems. It also functions with Hydro-Quip Platinum Series 6501B and 6502B systems. The Lite Duplex Digital panel is compatible with Duplex Digital and Super Digital/M-1 circuit boards. It features a 7ft cord with an 8 wire phone jack style plug and comes with an overlay. Button configuration is: Jets, Jets, Temp, Light. LCD display.
