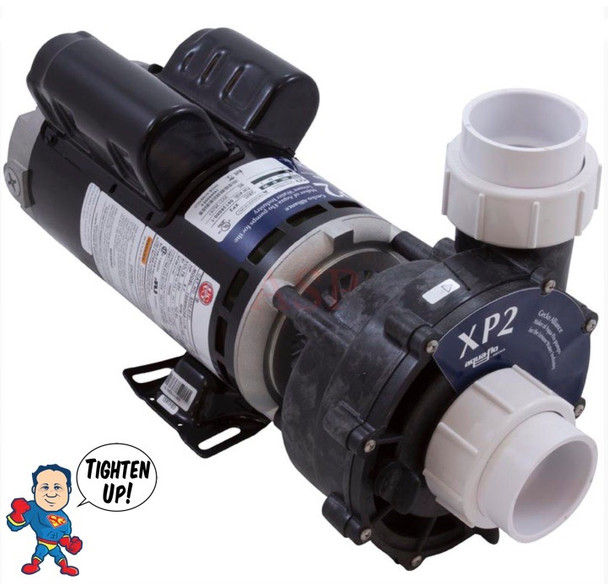

Complete Pump, Watkins, 1019801, 2.0HP, 230v, 2-spd, 48frame, 2", 1 or 2 speed 8.5A

Read this information to Help to determine the Frame and HP.. The way you can determine whether your pump is a 48 or 56 Frame is by measuring the width of the motor. A 48 Frame motor will measure 5 3/4" wide across the back and a 56 Frame will measure about 6 1/2" wide across the back.

For 230 Volt Pumps Look on the label of the motor for the two amperages if you have a 2 speed pump, if its a single speed look for a single amperage. It will look something like this: 10.0/3.5  The 10.0 is the high amperage in this example.

8.0 = 1 HP

10.0 = 2 HP

12.0 = 3 HP

14.0 = 4 HP

16.0 = 5 HP

For 115 Volt Pumps Look on the label of the motor for the two amperages if you have a 2 speed pump, if its a single speed look for a single amperage. It will look something like this: 10.8/2.8  The 10.8 is the high amperage in this example and would equate to a 1 HP.

  8.0 = .5 HP

9.0-10.0 = .75 HP

10.0-13.00 = 1 HP

13.5-15.0 = 1.5 HP

16.0-20.0 = 2 HP

Note: These Amperages are Averages so find the Amperage closest to your pumps Amperage. Note for the Note: 2HP 115V pumps are very rare, do not order one thinking you can add more power. This pump or even a 1.5HP pump will cause your PLug N Play tub to damage the electrical system, Plug, Wires and even the pump motor.

NOTE: Your pump or motor may say a different Horse Power than what you see here, DO NOT go by what is listed on the motor, go by the amperage on the label.

NOTE for the NOTE: TRUST ME ON THIS, everybody lies about their Horse Power. But the amperage does not lie. Most people are told they have 5 HP pumps, if you do the math two 5 HP pumps at 16 amps is 32 amps. Plus a 5.5 KW heater is 21 amps. That means with both pumps running and the heater on it will draw 53 AMPS. I bet your HOT TUB is on a 50 AMP breaker. Therefore contrary to what you have been told you DO NOT have a 5 or 6 or 7 Hp pump.
