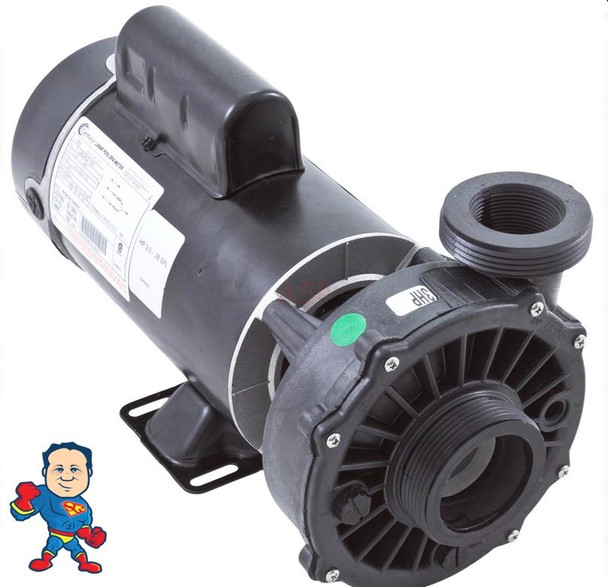

Hi-Flo, Pump, Waterway, 1.0HP called 3.0hp, 230v, 2-Speed, 48 frame, 2" X 2"

(No reviews yet) Write a Review
SKU:
HTP34-270-3630
  • Hi-Flo, Pump, Waterway, 1.0HP called 3.0hp, 230v, 2-Speed, 48 frame, 2" X  2"
  • Hi-Flo, Pump, Waterway, 1.0HP called 3.0hp, 230v, 2-Speed, 48 frame, 2" X  2"
  • The Threaded parts of this Wet End are called 2" and measure 3" edge to edge..
  • Hi-Flo, Pump, Waterway, 1.0HP called 3.0hp, 230v, 2-Speed, 48 frame, 2" X  2"
  • An example of the measurements of this pump with the Hi-Flo Wet End..
  • An example of the measurements of the Hi-Flo Wet End..
MSRP: $596.00
$348.99
— You save $247.01

Description

You are buying a Complete 1.0HP called a 3.0HP Hi-Flo Side Discharge 48-Frame Pump is 2" x 2" which measures about 3" across the threads and is an efficient pump designed for high volume discharge for faster filtering cycles. Please see the pictures to be sure that the Hi-Flo Style Waterway Wet End is the correct Wet End for you.. Note: It looks a lot like an Executive Wet End but is much smaller.  See Features below to be sure this is the right part for you.



PLEASE NOTE: IF YOU ARE NOT WILLING TO DO YOUR DUE DILIGENCE IN CHOOSING THE CORRECT PART MEANING YOU ARE NOT WILLING TO USE OUR PICTURES AND/OR VIDEOS TO MAKE SURE YOU CHOOSE THE CORRECT PART PLEASE DO NOT BUY FROM US. WE HAVE DONE A LOT OF EXTRA WORK TO HELP YOU ENSURE YOU GET THE CORRECT PART THAT IS WHY I DON'T ACCEPT RETURNS CHOOSE CAREFULLY!!!



Spa Pump Features:

  • High volume side discharge efficiency
  • 60% more efficient than our center discharge pumps
  • 2" intake and discharge
  • Wet end can be rotated for easy installation
  • Large 6-1/2" diameter wet end for higher head pressure
  • Dimensions (H x W x L): 7.5" x 7.375" x 14.23"
Complete Pump Type Portable Spa Pump
Speed 2 Speed (2-Spd)
Motor Voltage 230v
Drain Plug Location 3,6,9 o`clock
Pump to Motor Foot Types 17
Suction Style Center
Suction Connection (Physical Dimension) 3-1/16" od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16" od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.0hp called 3.0hp
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 8.4A/2.6A
Manufacturer Waterway
Pump Model Hi-Flo
Manufacturer Impeller Number 310-4020
Volute Fastening Type 8 Screws
Volute/Sealplate Number 315-2500
