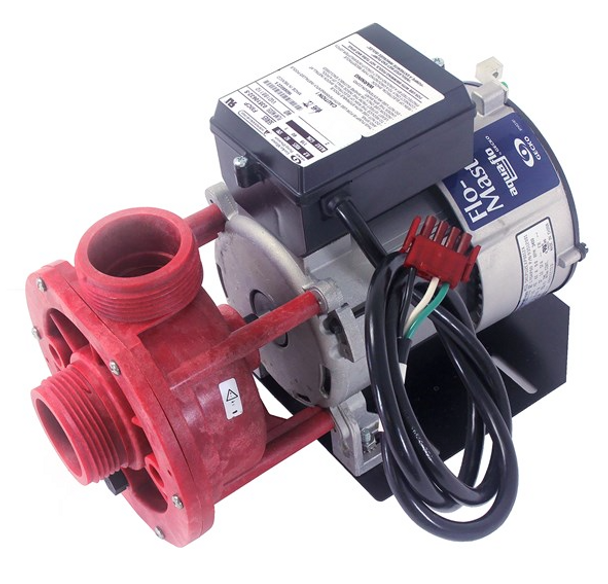

Pump, Dreamaker Spas, 1.5HP (Pre-2014) 115V, 1-Speed, 1-1/2"MBT, CD, 48-Frame w/ Amp Cord

(No reviews yet) Write a Review
SKU:
HTP03510632-5
MSRP: $641.14
$403.87
— You save $237.27

Description

This Pump is a 48Frame 115V 1 Speed with a 1.5-2.0 HP Wet End that features a 1 1/2" x 1 1/2" Center Discharge inlet and outlet Wet End that measures about 2 5/16" across the threads...  This pump is designed to fit Dreamaker Spas with friction style heaters.

Pump Brand: Dreamaker
Pump Horsepower: 1.5 HP
Pump Voltage: 115 Volt
Speeds: 1 Speed
Frame: 48Y
Discharge Location: Center Discharge
Plumbing Size: 1-1/2" MBT
Pump Note: w/Amp Cord














Read this information to Help to determine the Frame and HP.. The way you can determine whether your pump is a 48 or 56 Frame is by measuring the width of the motor. A 48 Frame motor will measure 5 3/4" wide across the back and a 56 Frame will measure about 6 1/2" wide across the back.



For 230 Volt Pumps Look on the label of the motor for the two amperages if you have a 2 speed pump, if its a single speed look for a single amperage. It will look something like this: 10.0/3.5  The 10.0 is the high amperage in this example.

8.0 = 1 HP

10.0 = 2 HP

12.0 = 3 HP

14.0 = 4 HP

16.0 = 5 HP



For 115 Volt Pumps Look on the label of the motor for the two amperages if you have a 2 speed pump, if its a single speed look for a single amperage. It will look something like this: 10.8/2.8  The 10.8 is the high amperage in this example and would equate to a 1 HP.

       8.0 = .5 HP

9.0-10.0 = .75 HP

10.0-13.00 = 1 HP

13.5-15.0 = 1.5 HP

16.0-20.0 = 2 HP

Note: These Amperages are Averages so find the Amperage closest to your pumps Amperage. Note for the Note: 2HP 115V pumps are very rare, do not order one thinking you can add more power. This pump or even a 1.5HP pump will cause your PLug N Play tub to damage the electrical system, Plug, Wires and even the pump motor.



NOTE: Your pump or motor may say a different Horse Power than what you see here, DO NOT go by what is listed on the motor, go by the amperage on the label.

NOTE for the NOTE: TRUST ME ON THIS, everybody lies about their Horse Power. But the amperage does not lie. Most people are told they have 5 HP pumps, if you do the math two 5 HP pumps at 16 amps is 32 amps. Plus a 5.5 KW heater is 21 amps. That means with both pumps running and the heater on it will draw 53 AMPS. I bet your HOT TUB is on a 50 AMP breaker. Therefore contrary to what you have been told you DO NOT have a 5 or 6 or 7 Hp pump.
