Description

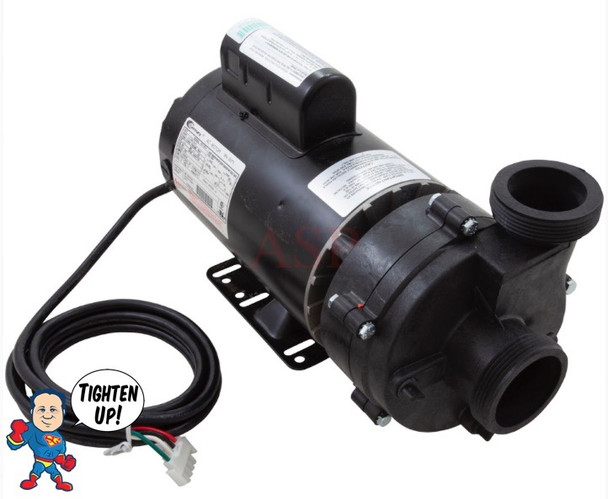

This genuine Vico Ultimax complete spa circulation pump delivers powerful 3.0HP performance with dual-speed operation for portable hot tubs. Engineered with a 56 frame thru-bolt motor design, this unit operates at 12.0 Amps on high speed and 3.4 Amps on low speed settings.
Technical Specifications:
Complete Pump Type: Portable Spa Pump
Speed: 2 Speed (2-Spd)
Motor Voltage: 230v
Drain Plug Location: 6,9 o'clock
Pump to Motor Foot Types: 6
Suction Auxiliary Port: 3/8" barb (b) 1ea
Suction Style: Center
Suction Connection (Physical Dimension): 3-1/16"od
Suction Connection Type: Male Buttress Thread (mbt)
Suction Pipe Size: 2"
Discharge Auxiliary Port: 3/8" barb (b) 1ea
Discharge Style: Side
Discharge Connection (Physical Dimension): 3-1/16"od
Discharge Connection Type: Male Buttress Thread (mbt)
Discharge Pipe Size: 2"
Horsepower: 3.0hp
Motor Frame: 56 Frame Thru-Bolt
Motor Amperage/Wattage: 12.0A/3.4A
Manufacturer: Vico/Balboa
Pump Model: Ultimax
Manufacturer Impeller Number: Click Here green/red
Volute Fastening Type: 4 Bolts 4 Nuts
Volute/Sealplate Number: 1211027
