Description

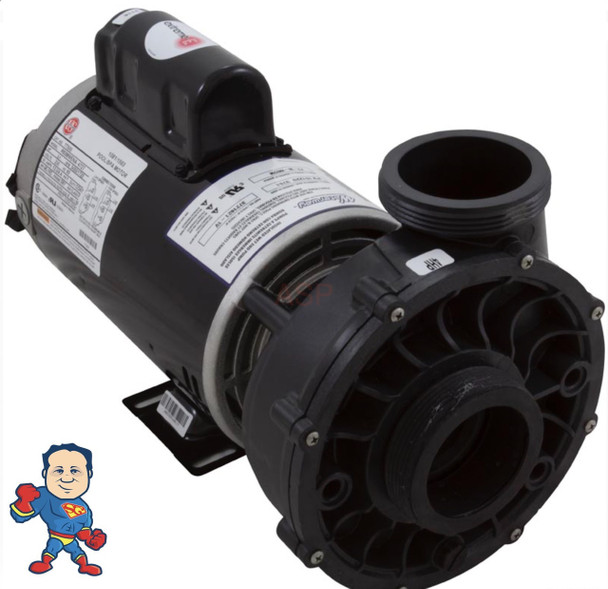

This pump is a rated 5HP Viper 2 1/2" x 2 1/2" 56 Frame Spa Pump... The measurement from the edge of the thread to the edge of the thread on the Suction and Pressure side is 3 11/16".. It is an unusual pump not found in most hot tubs.. It is in some brands like Coast and some others and found in many Swim Spas.. It has a Viper wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.
Spa Pump Features:
- Viper wet end designed specifically for 56-frame motors
- Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
- Two speed motors have four sets of insulated windings for increased efficiency
- 56-frame motor for added strength, cooler operating temperature, and longer motor life
- Large 2-1/2" intake for improved flow performance and reduced noise
- Large 8" diameter wet end for increased volume capacity
- Split capacitor, (start and run) for less energy consumption
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90 degrees
- Dimensions (H x W x L): 9.08" x 8.05" x 15.72"
- California Title 20 Compliant
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 3,4,6,9 o`clock |
| Pump to Motor Foot Types | 1 |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-11/16"od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2-1/2" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-11/16"od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2-1/2" |
| Horsepower | 4.0hp |
| Motor Frame | 56 Frame Thru-Bolt |
| Motor Amperage/Wattage | 16.4A/4.8A |
| Manufacturer | Waterway |
| Pump Model | Viper |
| Manufacturer Impeller Number | Click here for the Impeller that fits this p |
| Volute Fastening Type | 8 Screws |
| Face Plate Number | Click Here for the Face Plate that fits this pump |
| Manufacturer Wet End Number | Click here for the wet end that fits this pump |
