Description

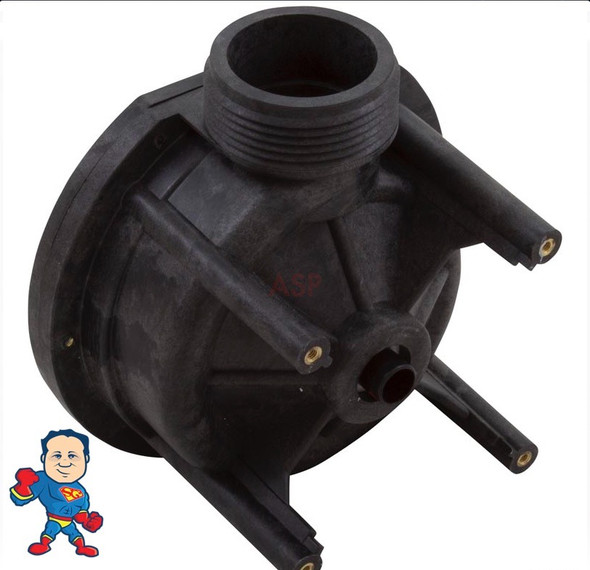

Genuine Aqua-Flo wet end replacement component designed for TMCP Garden Tub Bath Pump applications with 48 Frame construction rated at 1.0HP, operating on 115V systems drawing approximately 12 Amps.
Critical Measurement Information: External thread diameter is approximately 2 3/8", requiring a matching 2 3/8" internal diameter on your current Pump Union connection.
Bolt pattern dimensions include X-configuration spacing measuring approximately 5 1/8" with square pattern spacing of approximately 3 5/8" measured center to center.
This auto-bleed wet end is specifically manufactured for Bath Garden tub applications only.

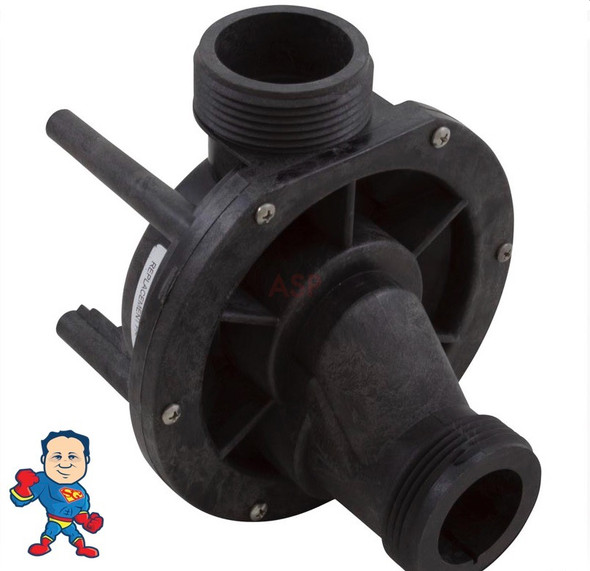

Technical features: bottom-mounted suction intake, center-positioned discharge outlet, 1-1/2"mbt thread connections on both suction and discharge ports, 48 frame 100% self-draining design for TMCP pump series. Works with 1.0hp, 48Y frame, thru-bolt motor styles in single or dual speed versions. Full assembly includes: volute body, seal assembly, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and mounting hardware. Motor and union fittings sold separately.
Pump to Motor Foot Types 15
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location None
Suction Auxillary Port None
Suction Style Center
Suction Connection (Physical Dimension) 2-7/16"od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 1-1/2"
Discharge Auxilary Port None
Discharge Style Side
Discharge Connection (Physical Dimension) 2-7/16"od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 1-1/2"
Horsepower 1.0hp
Manufacturer AquaFlo/Gecko
Pump Model Flo-Master TMCP
