Description

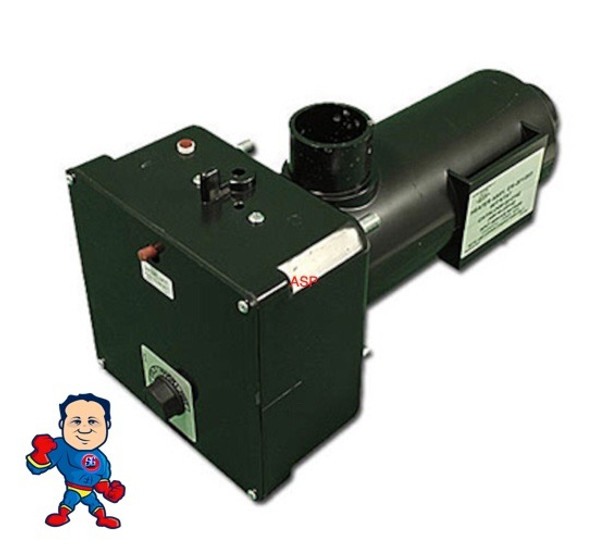

This part is a 90° replacement Heater Assembly, Brett Aqualine, Plastic Manifold, 5.5kW, 230V, w/Hi-Limit, Thermostat, P-Switch and plumbing kit. This heater also replaces the HT-1, EM201/203 models. Usually found plumbed to the discharge of a center discharge pump with 1.5" unions. The output side of the heater ties to the line going back into the tub.
Includes Plumbing Kit: (2) 1-1/2" Unions, (2) 1-1/2" 90 Elbows, 6" of 1-1/2" pipe and threaded tailpiece.
| Housing Configuration | 90 Degree |
| Heater Length | 12" |
| Threaded Tap Orientation | Flange |
| Kilowatts | 1.375kW, 5.5kW |
| voltage | 115v, 230v |
| Sensor Stud Orientation | None |
| Mounting Stud Type | None |
| Heater Size | 1-1/2" |
| Heater Application | Brett Aqualine, HT-1, EM201/203 |
