Complete Wet Ends

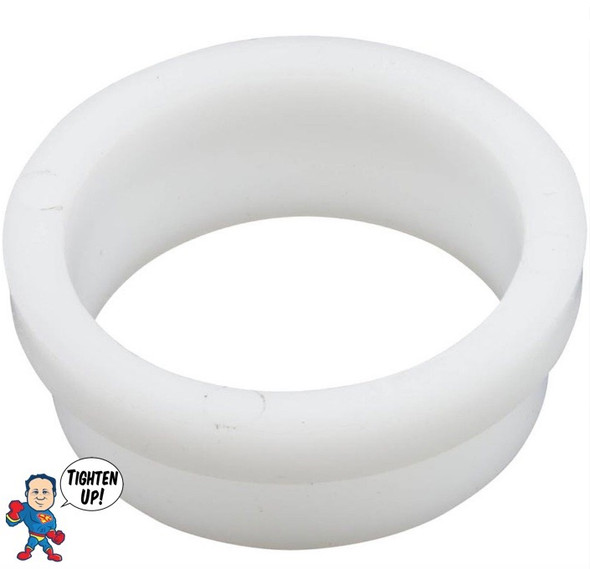

This part is a replacement wear ring for Wavemaster 5000 Pump Impellers with a 1 3/4" Eye.. The ring measures about 1 3/4" inside the wear ring and 2 3/16" at the widest part and about 3/4" tall..   The below List is other parts related to this...

This part is a replacement wear ring for Wavemaster 3000 Pump Impellers with a 1 3/4" Eye.. The ring measures about 1 3/4" inside the wear ring and 2 3/16" at the widest part and about 3/4" tall.. For Other related parts see the below links:  ...

This is a 1HP Impeller for a Wavemaster 3000 Code 04184 48 Frame Side Discharge pump. This Impeller fits between the Face and the Volute of a Wavemaster 3000 Series Wet End. I would advise replacing the Seal when you replace the Impeller. This Impeller...

Watkins Vendor Code 4081 Wavemaster, 4000, 6000, 7000, 8000, 8200, 9000, 9200... 48Frame Pump Face O-Ring Only fits around the Face of this Pump Face...

This Part is a 2 1/8" wear ring that is used between the impeller and the wet end face on Watkins Vendor Code # 4081, Wavemaster, 4000, 6000, 7000, 8000, 8200, 9000, 9200.. This wear ring serves as a seal between the suction and pressure sides of the...

  This is a 1HP Seal & Impeller Kit for a Watkins 37334 Vendor Code# 4081 Pump with a 2 1/8" Eye with 1/4" Vane Width and 3 7/8" OD for an Wavemaster 48 1.0HP Motor would be about 7-8.0 Amps on high speed at 230V or 11-12.0 Amps at...

This Connect Kit is an Air Bleeder barbed plug, 3/8" X 3/8" Barbed Coupler, 4" of 3/8" Tubing and Silicon sealer usually used on a Waterway Hot Tub Pump Face to bleed the air off the pump while filling the tub up. I have seen these fittings in many...

This item is a 48 Frame Vico Wet End with 2" x 2" inlet and outlet that would measure about 3" across the threads and it has a 3.0HP impeller which would fit a motor that has 10.0-12.0 amps at 230V and there are no 115V motors this fits.. Pump to Motor...

This part is a Sta-Rite Dura-Jet Complete 2" X 2" Wet End that fits both 48 or 56 frame motors and would fit a 230V Pump that is 8.0 Amps or a 115V pump that is 12.0 Amps.. The 2" fitting actually measures about 3" Edge to Edge across the threads.. It...

This complete pump and motor is a Watkins Wavemaster 7000 replacement, 36675, 71699, 115V or 230V, (1) Speed, 16.0Amp or 8.0Amp, 48 frame 2" x 2" XP2 pump and motor... The 2" inlet and outlet measure about 3" across the threads... Keep in mind if you...

Waterway Hi-Flo Wet EndSide discharge, 2"mbt suction/discharge, 48 frame wet end for the Waterway Hi-Flo pump. This wet end is used with a 11.0 Amp 2.0hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end...

This Wet End is a 2" x 2" 1.5HP 48 or 56 frame Ultimax Vico® that would normally be found an a 230V pump with 9.0 Amps High speed or 14.0 Amps at 115v..  This side discharge, 2" x 2" mbt which would measure about 3" edge to edge on the threads,...
