Watkins 48Fr LX Pump 2" X 2" 1.5HP 2 Speed 115V Watkins 37334-03 Vendor Code 3536

(No reviews yet) Write a Review
SKU:
ASP48WUABEEBC-IIWatkins
  • LX Pump 2" X 2" 1.5HP 2 Speed 115V Watkins 37334-03 Vendor Code 3536
  • LX Pump 2" X 2" 1.5HP 2 Speed 115V Watkins 37334-03 Vendor Code 3536
  • Note: If your original Pump has this on the back with a hose attached none of my pumps will have that nor will they be able to accept this part from your old pump.. You will save 100's of dollars over the original pump with that attachment that is only used to put heat from the motor under the tub and I believe the motors stay cooler without that device and last longer..
  • Compare your screws to be sure that this is the correct wet end.
  • Note: If your original Pump has this on the back with a hose attached none of my pumps will have that nor will they be able to accept this part from your old pump.. You will save 100's of dollars over the original pump with that attachment that is only used to put heat from the motor under the tub and I believe the motors stay cooler without that device and last longer..
  • LX Pump 2" X 2" 1.5HP 2 Speed 115V Watkins 37334-03 Vendor Code 3536 2" Pressure Side measures 3" across the threads..
  • LX Pump 2" X 2" 1.5HP 2 Speed 115V Watkins 37334-03 Vendor Code 3536 2" Suction Side measures 3" across the threads..
  • When putting your cord back on the new pump note C= Common or the White Wire, L= Low Speed and is usually the Black Wire and rarely the Red Wire, H=High Speed and is usually the Red Wire but occasionally the Black, Green = Ground or the Green wire. They way you can tell if you have it wired correctly is when you power up the pump should go into Low Speed First. If it goes into High Speed you need to power down and reverse the red & black wires and power back up and verify it goes into Low Speed first. If you leave it wrong it will overheat and damage the Hot Tub especially during warm weather...
  • LX Pump 2" X 2" 1.5HP 2 Speed 115V Watkins 37334-03 Vendor Code 3536 When putting your cord back on the new pump note C= Common or the White Wire, L= Low Speed and is usually the Black Wire and rarely the Red Wire, H=High Speed and is usually the Red Wire but occasionally the Black, Green = Ground or the Green wire. They way you can tell if you have it wired correctly is when you power up the pump should go into Low Speed First. If it goes into High Speed you need to power down and reverse the red & black wires and power back up and verify it goes into Low Speed first. If you leave it wrong it will overheat and damage the Hot Tub especially during warm weather...
  • When putting your cord back on the new pump note C= Common or the White Wire, L= Low Speed and is usually the Black Wire and rarely the Red Wire, H=High Speed and is usually the Red Wire but occasionally the Black, Green = Ground or the Green wire. They way you can tell if you have it wired correctly is when you power up the pump should go into Low Speed First. If it goes into High Speed you need to power down and reverse the red & black wires and power back up and verify it goes into Low Speed first. If you leave it wrong it will overheat and damage the Hot Tub especially during warm weather...
  • LX Pump 2" X 2" 1.5HP 2 Speed 115V Watkins 37334-03 Vendor Code 3536
MSRP: $439.99
$399.99
— You save $40.00

Description

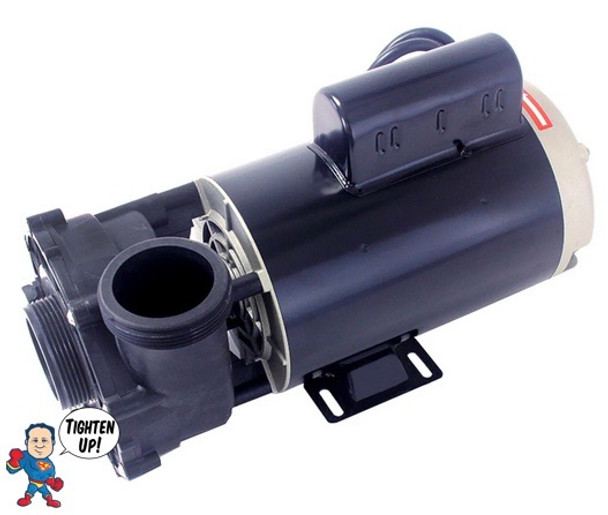

This 1.0 Horse Power 10.3/3.8 Amp (2) Speed 48 Frame Complete Pump is a Watkins Vendor Code 3536 LX Brand Pump. These pumps usually have the part number 37334-03 on the label for a Watkins Version.

It is about 7 1/4"" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 15" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.

Dimensions: 15-3/16"L x 8-7/16"W x 8-7/16"H

NOTE: This Pump looks a lot like an Aqua-Flo and a CMP Pump and they will interchange if you replace the entire pump! Also note make sure you are choosing correctly between the 48 and 56 frame versions this one is a 48 which measures less than 6" across the back of the motor the 56 measures more than 6"..

If your original Wet End has a Bleeder Barb and the heads of the Bleeder Screws in your old wet end have a spot for a flat screw driver you will need a new bleeder barb... If the original has a wing nut style you already have the newer style bleeder barb and will only need a new one if your original one breaks..








Click this link for the new Style Bleeder Barb: Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads

For the Bleeder Barb That fits this pump click Either of these links one is a 1/4" and one is a 1/2":

Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads

Pump Bleeder Barb, Watkins, Wavemaster, LX, 1/2" Barb x 1/4"Mpt

Manufacturer Wavemaster
Pump Model 48WUA
Speed 2 Speed (2-Spd)
Motor Voltage 115v
Drain Plug Location 3,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.0hp
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 10.3A/3.8A
