Description

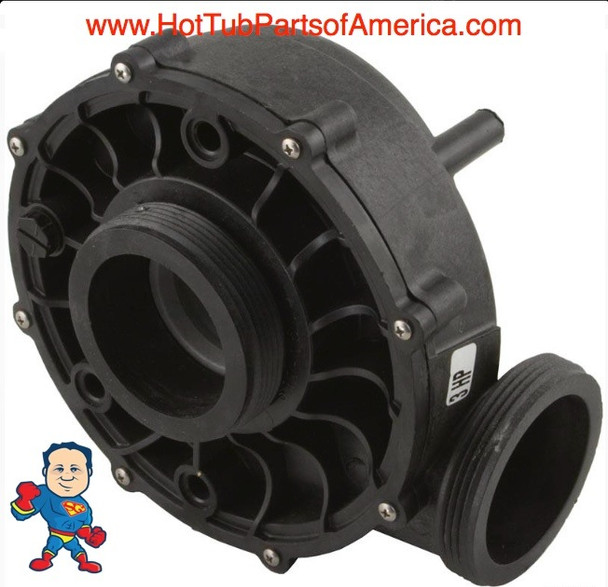

Complete 3.0HP Waterway Viper Wet End Assembly - designed for Waterway Viper pumps featuring 2 1/2 inch inlet and outlet ports with approximately 3 9/16 inch thread diameter measurement.
This genuine replacement wet end includes all necessary components for a complete rebuild. Individual components are also available separately including the face plate, face plate O-ring, and volute. Please note this Viper model requires a specialized seal kit unique to this pump series, different from standard Waterway pump seals. Seal kits, bearing kits, and combination seal-bearing kits are sold separately.
Replacement impellers available for 4HP and 5HP configurations, plus wear rings and additional bearings as needed.
Technical Specifications:
Pump to Motor Foot Types: 1
Motor Frame: 56 Frame Thru-Bolt
Drain Plug Location: 3, 4, 6, 9 o'clock positions
Suction Auxiliary Port: None
Suction Style: Center
Suction Connection Physical Dimension: 3-11/16 inch od
Suction Connection Type: Male Buttress Thread (mbt)
Suction Pipe Size: 2-1/2 inch
Discharge Auxiliary Port: None
Discharge Style: Side
Discharge Connection Physical Dimension: 3-11/16 inch od
Discharge Connection Type: Male Buttress Thread (mbt)
Discharge Pipe Size: 2-1/2 inch
Horsepower: 3.0hp
Manufacturer: Waterway
Pump Model: Viper
Manufacturer Impeller Number: 310-2270
Volute Fastening Type: 8 Screws
Volute/Sealplate Number: 315-1500
