Description

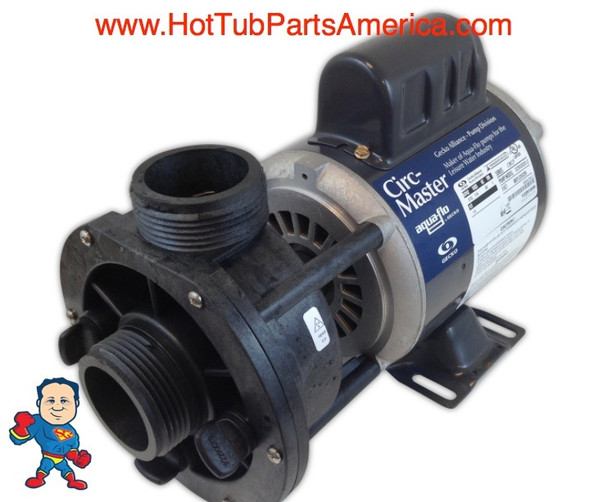

Global offers this high-performance 115V Center Discharge AquaFlo Circ-Master circulation pump featuring 1 1/2" inlet and outlet connections with threads measuring approximately 2 3/8" across.
The Circ-Master represents advanced technology in round-the-clock spa filtration, providing superior gallons per minute flow compared to standard recirculation pumps available in the hot tub market. Enhanced GPM capacity enables this unit to power high-flow heating systems, resulting in improved heating performance and filtration capability up to four times greater than conventional models.
Key Pump Specifications:
- Robust 48 frame continuous-duty construction featuring front and rear permanently lubricated ball bearings for extended service life
- Carbon-graphite self-lubricating seal engineered for non-stop operation
- 1-1/2" intake and outlet ports
- Convenient quick release compression fittings simplify installation and service procedures
- Offered in both side discharge and center discharge configurations
- Motor options include 115v and 230v
This circulation pump utilizes a 0.75ohp rated impeller. Operating on a motor running at 1725RPM delivers 1/15th horsepower output.
Reference part number HTP34-402-1146 for the 115V model.
| Complete Pump Type | Circulation Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o'clock |
| Pump to Motor Foot Types | Pump to Motor Foot Types |
