Description

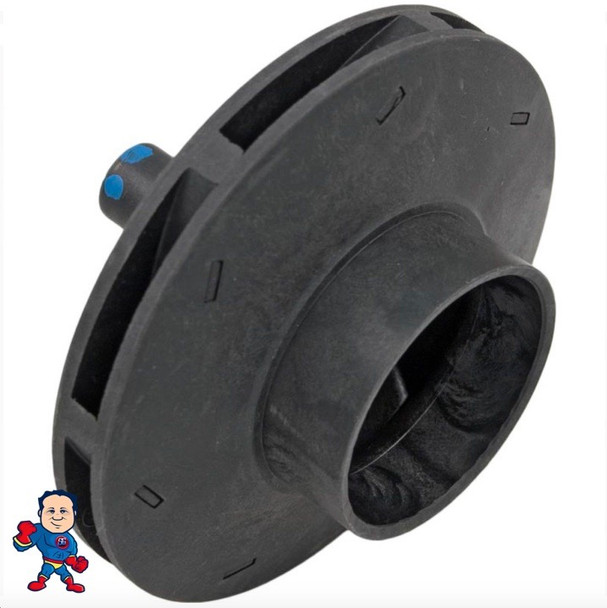

Genuine 2.0 Horsepower Impeller for Aqua-Flo XP2 and FMXP2 Wet End Systems
This high-performance impeller is engineered specifically for Aqua-Flo 48 and 56 frame wet end assemblies operating with 2.0HP motors. Precision-manufactured with exact specifications: 2 1/8 inch eye diameter, 1/4 inch vane thickness, and 4 3/8 inch outer diameter. Part number 91694200.
Electrical Specifications: Designed for motors drawing approximately 10.0 Amps at high speed on 230 Volt systems, or 16.0 Amps at high speed on 115 Volt configurations.
Installation Details: This component mounts between the face plate and volute housing of your wet end assembly. We strongly recommend installing a fresh PS-200 seal kit during impeller replacement to ensure optimal performance and prevent leaks.
Frame Compatibility Guide: 48 Frame wet ends feature 3 5/8 inch bolt spacing (5 3/16 inch diagonal) with 1/4 inch bolt heads. 56 Frame models have 4 1/8 inch spacing (5 3/4 inch diagonal) with 5/16 inch bolt heads.
Important Warning: Never install an impeller rated higher than your motor's horsepower capacity. Oversized impellers cause excessive heat buildup and premature motor failure. Always verify amperage draw matches the reference chart for your voltage to confirm proper horsepower rating.
Horsepower Verification: For 2HP applications at 115 volts, expect 15-16 Amps on high speed; at 230 volts, expect approximately 10 Amps on high speed. Consult amperage specifications to verify correct horsepower before ordering.
Precision replacement component - verify all measurements and electrical specifications before purchase. No returns accepted on pump components.
